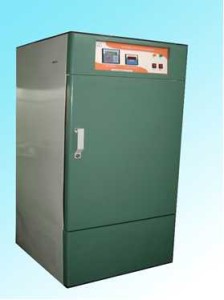

Laboratory Environment Test chambers are designed & fabricated to suit Various I. S. standards application in the growing field of Medical, Agricultural, Industrial, Research laboratories, Metal Treatment & Various industrial test centre. It has a cutting edge technology to challenge & maintain Climatic conditions above freezing what so ever & where ever your need.
Features :
a) Temperature : + 10ºC to 60ºC
b) Humidity (R.H.) : 40% to 95%
c) Digital Display : Temperature and R.H
d) Humidity Controller With an accuracy of +/-0.5 deg. C & +/-3% R.H
Technical Specification :
| Capacity | 90 ltrs. | 170 ltrs. | 285 ltrs. | 340 ltrs. | |
| Dimension | Inner | 40 x 40 x 57 | 50 x 40 x 85 | 57 x 57 x 58 | 60 x 60 x 95 |
| Outer | 53 x 68 x 135 | 63 x 68 x 163 | 70 x 85 x 166 | 73 x 88 x 173 | |
| Chamber | Internal | Stainless Steel 304 / 316L quality | |||
| External | Mild Steel powder coated / Stainless steel Matt Finish | ||||
| Temperature | Range | + 10ºC to 60ºC | |||
| Accuracy | ± 0.5ºC fo set value for temp. /± 3% R.H. (humidity) | ||||
| Uniformity | ± 0.5ºC for temp ± 3% Humidity | ||||
| Water tank capacity in Ltrs | Reservoir | 4 | 4 | 9 | 9 |
| Boiler | 4 | 4 | 9 | 9 | |
| Shelves | 2 | 2 | 3 | 3 | |
| Colour | Plate finish | ||||
| Controller | Digital Display Electronic Controllers | ||||
| Compressor | Hermetically sealed Kirloskar Compressor | ||||
| Sensor | Pt 100 for Dry and Wet Bulb capacitor type for Humidity. | ||||
| Insulation | Body | Puf 50 mm / Glass Wool 65 mm | |||
| Door | Thermo Cole | ||||
| Inner Acrylic Door | Inner Full Size Through Acrylic 8mm thick | ||||
| Circulation | 1/12 Hp, 1440 R.P.M. Motorized blower from back | ||||
| Heat up time | 30 min. up to + 60ºC. without load | ||||
| Cool down time | 30 min. up to + 60ºC. without load | ||||
| Steam Injection system | I.S.I. Mark steamer | ||||
Optional Features :
- Imported Sensor Capable of maintaining 0 to 100% R. H. , Accuracy of ± 2ºC.
- Computer Interface RS 485 / RS 232 interface for multiple / single communication port.
- Safety device Thermostat or Energy Regulator.
- Over heating or humidity soft alarm.
- Cyclic timer 0 to 24 hrs x 7 days cyclic.
- ON / OFF timer for illuminating condition.
