Ovens

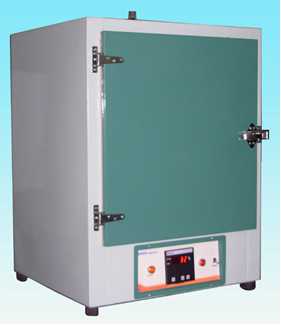

Oven

Shelves by default are made of galvanized wire mesh. Shelves made of stainless steel will be supplied at extra cost.  Air forced circulation fan can be supplied at extra coast for better accuracy. We can fabricate any size of oven as per customer specification. PID microprocessor temperature controller cum indicator. Controller Interface through RS232C / RS 485 for multiple networking.





Chamber size (w x d x h) Watts Shelves
12″x 12″x12″ 1000 1
14″x14″x14″ 1450 2
18″x18″x18″ 1750 2
18″x18″x24″ 2000 3
24″x24″x24″ 2500 3
18″x24″x36″ 3000 3
24″x24″x36″ 3500 3

Vacuum Oven

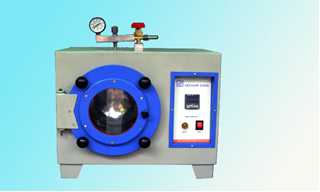

Vacuum Oven

SALIENT FEATURES :

Hi-tech Vacuum Oven Double walled. The cylinder is made of thick stainless steel 304 material and the outside is  MS powder coated. High grade mineral glass wool insulation around the walls to avoid energy loss. Temperature range from 50°C to 230°C with ±2°C accuracy. Temperature controlled by Digital temperature Controller cum indicator. Vacuum chamber is wrapped with a set of high quality heaters for quick and uniform heating. Door has a thick toughened glass window, perfectly sealed with silicon gasket for thermal condition. Specially designed pre-treated Aluminium door has a screwed door closure. Proper door alignment to ensure excellent vacuum performance and operator’s safety.
