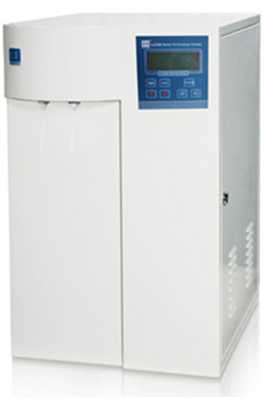

UPZGH series ultra pure water purification system produces RO pure water (2～10µs ) and UP ultrapure water (18.2MΩ.cm) directly from the tap water. With LCD display, fully automatic PLC control, UPZGH Series is really cost-effective.
Features :
◆ On-line monitoring the conductivity and temperature of RO pure water
◆ Online monitoring UP ultrapure water resistivity
◆ Automatic flush the RO membrane by the system
◆ The quality of purified water is enhanced by the internal recirculation system
◆ Automatic flush the RO membrane by the system
◆ Historical data enquiry
◆ Bench top with 10-inch Pre-treatment Cartridge in standard configuration .
◆ Dispense water at a fixed time and volume set by the user (while there is water storage in reservoir)
Technical Specification :
| UPZGH-I Basic Type for General Laboratory Applications | |||
| Application: AA, AFS, IC, HPLC, ICP and etc. | |||
| Model | UPZGH-I-5T | UPZGH-I-10T | UPZGH-I-20T |
| Water Produced | 5L/H | 10L/H | 20L/H |
| Flow Rate | 1.5-2.0L/Min (when reservoir is fulll) | ||
| Water Quality | Resistivity:18.2MΩ.cm, Heavy metal ions<0.1ppb, TOC<20ppb, Bacterial <1cfu/ml, Particulates <1/ml | ||
| UPZGH-II Pyrogens-free Type for Life Science Applications | |||
| Application: HPLC, GC, Amino acid analysis, Protein purification, Electrophoresis, Toxicology, Culture media of animal cell and vegetable cell, buffer and molecular biology and etc. | |||
| Model | UPZGH-Ⅱ-5T | UPZGH-Ⅱ-10T | UPZGH-Ⅱ-20T |
| Water Produce | 5L/H | 10L/H | 20L/H |
| Flow Rate | 1.5-2.0L/Min (when reservoir is fulll) | ||
| UF Membrane | with cut off below 5,000Dalton | ||
| Water Quality | Resistivity:18.2MΩ.cm, Pyrogens <0.001EU/ml, Heavy metal ions<0.1ppb, TOC<10ppb, Bacterial <1cfu/ml, Particulates <1/ml | ||
| UPZGH-III Analytical Chemistry Applications | |||
| Application: TOC, VOC, HPLC, IVF, PCR, ICP/MC, Culture media of animal cell and vegetable cell, Electrochemical Interface, Genetic Analysis, test tube baby research. | |||
| Model | UPZGH-Ⅲ-5T | UPZGH-Ⅲ-10T | UPZGH-Ⅲ-20T |
| Water Produced | 5L/H | 10L/H | 20L/H |
| Flow Rate | 1.5-2.0L/Min (when reservoir is full) | ||
| UV lamp | 185/254nm | ||
| Water Quality | Resistivity:18.2MΩ.cm, Heavy metal ions<0.1ppb, TOC<20ppb, Bacterial <1cfu/ml, Particulates<1/ml, absorbency(254nm,1cm) ≤0.001 | ||
| UPZGH-IV Molecular Biology Applications | |||
| UPZGH-IV super combination type has been unexceptionably combined UF Membrane and UV lamp to produce the ideal ultrapure water. | |||
| Model | UPZGH-Ⅳ-5T | UPZGH-Ⅳ-10T | UPZGH-Ⅳ-20T |
| Water Produced | 5L/H | 10L/H | 20L/H |
